formwork tools adjustable tie rod Dia 15/17mm

formwork tools adjustable tie rod Dia 15/17mm

formwork tools adjustable tie rod Dia 15/17mm
formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm formwork tools adjustable tie rod Dia 15/17mm

Large Image :  formwork tools adjustable tie rod Dia 15/17mm Get Best Price

Product Details:
Place of Origin: Shandong, China
Brand Name: Jingang
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: USD0.3-1
Packaging Details: Pallet
Delivery Time: 20days
Payment Terms: T/T, LC
Supply Ability: 10000pcs/day
Detailed Product Description
Diameter Of Tie Rod: 15/17mm

Surface:  galvanized

Material: iron,steel suitable for 15/17mm

base plate size: Dia70mm, 90mm, 100mm, 110mm,130mm

Process:casted

Produced in our own factory,can control the quality much better

Samples are available

Performance:good bearing capacity,durable

OEM service is available.



tie rod



material:Q235



surface:galvanized or self colour



size:D15/17mm



Process:cold rolled and hot rolled

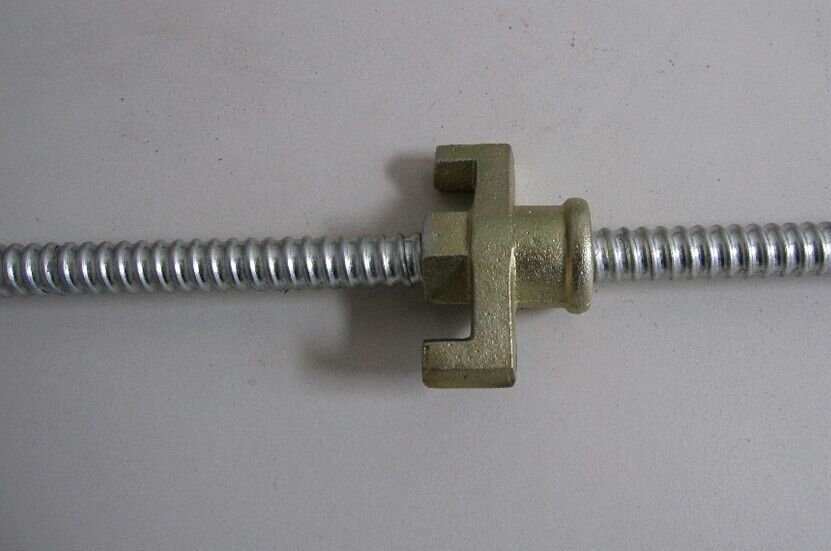

Application: To be used with wing nut to connect and fix the formwork



 Advantage:high quality and competitive price



Q1:What is the material of formwork wing nut tie rod?





A1:  ductile iron QT450-10 for wing nuts, Q235 for tie rod.



Q2:  What is surface finishing of casting wing nut and tie rods?





A2:  electro galvanized



Q3:What's the length of tie rod?



A3: 1m-6m, or based on customer's requestment



Q4: What's the diameter of tie rod?

A4: Ordinary diameter is 15/17mm, thread pitch:6mm

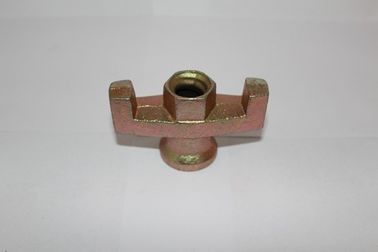

Q5: What's the size of base plate wing nut?



A5:   Dia70mm, 90mm, 100mm, 110mm,130mm



Q6: Can you supply OEM service based on  wing nuts drawings or tie rod size?



A6: Yes, we can





Q7: Can you put custom logo on cast wing nuts?



A7: Yes,we can.



Q8:Is there cheap shipping cost to import to our country?



A8: For small order,express will be best.And for bulk order,sea ship way is best but take much time;
For urgent orders,we suggest via air to airport plus our ship partner send to your door.



Q9:Can we get support if we have our own market position?



A9: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
